5.0" Smart TFT Module | 800x480 STM32F767 Capacitive touch TFT
display
HTM050A1-USART-ST V1.0 | 5.0" IPS LCD Display | 800x480 Pixels | LCD Controller Board |
Luminance 450cd/m2 | Interface STM32F767,GT911(CTP) | TFT MODULE | -20°C ~ 80°C | Smart serial Capacitive Touch screen
HTM050A1-USART-ST V1.0 is a 5-inch smart serial screen with a UART (Universal
Asynchronous Receiver-Transmitter) interface and a capacitive touch
panel. It features a high-quality IPS LCD display with a resolution
of 800x480 pixels, providing clear and vibrant visuals.
The LCD controller board integrated into the module ensures smooth
and efficient communication between the display and the controlling
device. This allows for easy integration into various electronic
systems, such as embedded systems, IoT devices, industrial control
panels, and more.
With a luminance of 450cd/m2, this display offers excellent
brightness, ensuring good visibility even in bright ambient light
conditions. The high brightness is especially useful in outdoor or
well-lit environments where readability is crucial.
The module supports a wide temperature range from -20°C to 80°C,
making it suitable for operation in both extreme cold and hot
environments. This temperature resilience enables its use in
applications that require reliable performance across different
climates and industrial settings.
The capacitive touch screen technology adds an intuitive and
user-friendly interface to the display. It allows users to interact
with the screen using touch gestures, offering a more engaging and
responsive user experience.
Overall, the HTM050A1-USART-ST V1.0 is a versatile TFT LCD module with a UART interface, offering a
combination of high-quality visuals, robust communication
capabilities, wide temperature tolerance, and capacitive touch
functionality. It is well-suited for a range of applications,
including industrial automation, medical devices, consumer
electronics, and more.
General information
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | HTM050A1-USART-ST V1.0 | |
| Diagonal size | 5.0” | Inch |
| Resolution | 800x480 | Dot |
| Dimensions | 121.7x97.0x20.7 | mm |
| Active area (AA) | 108.8x64.8 | mm |
| LCD type | 5.0" Smart TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | STM32F767,GT911(CTP) | |
| Brightness | 450cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
All Products
Reliability Testing | Customers can expect all production parts to meet or exceed
operational requirements over temperature, humidity, and vibration. |
Glass Cleanliness | Customers can expect glass to be protected by liners and presented
mindful of cleanliness standards. This means glass will be clean of
contaminants, fingerprints, and other foreign material. |
Bezel Appearance | Bezels will be uniformly painted free of foreign materials and
distracting cosmetic blemishes. Our standards maintain a clean
scratch-free surface. |
PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes
are free of bubbles, foreign contaminants, and meet all UL fire
requirements. PCB materials will always be delivered within
industry norms. PCB edges will be cleanly cut and void of burrs. |
Soldering | Soldering of all leaded and SMT components is consistent in
providing the mechanical security and electrical connectivity. |

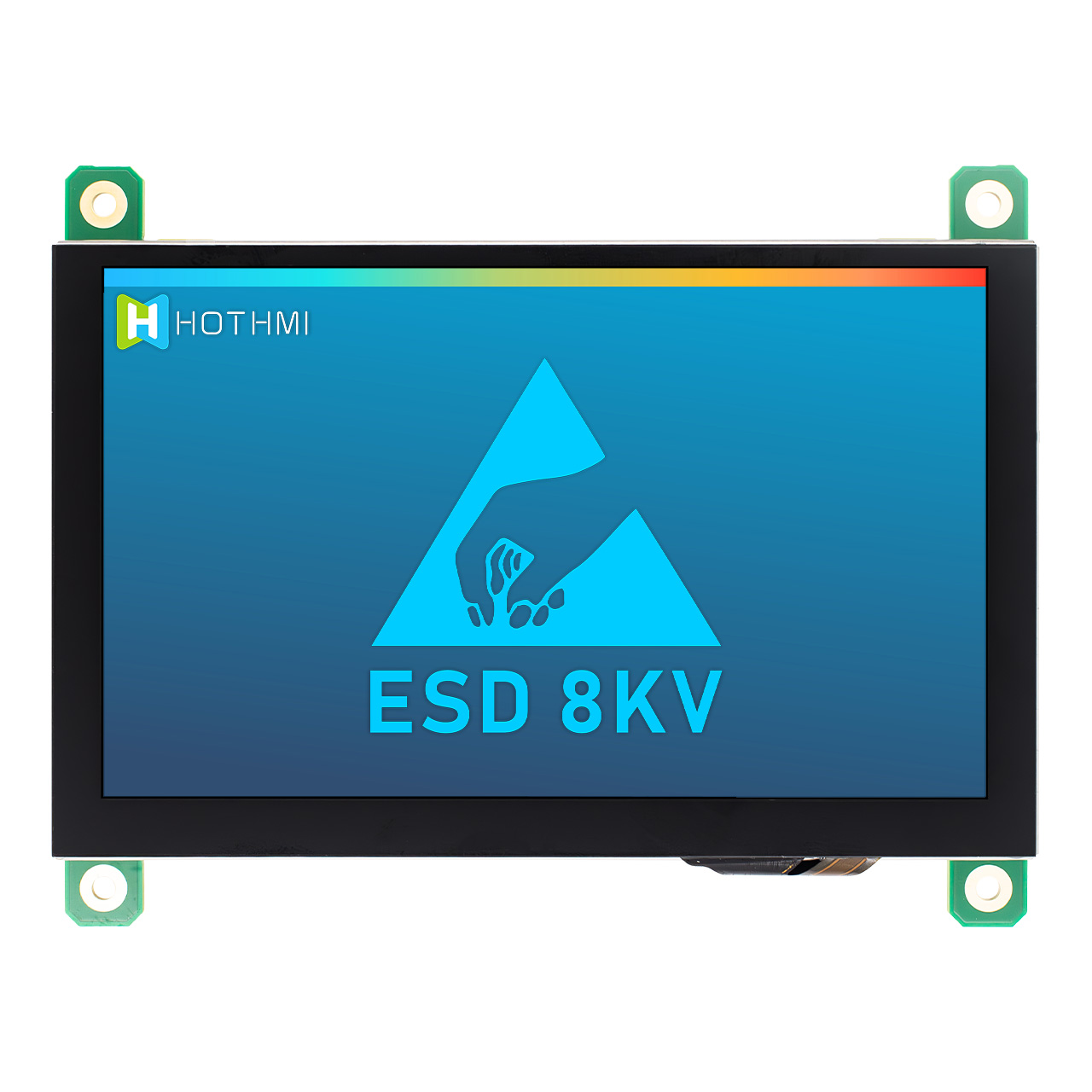

ESD Protection & Safety | All devices are designed and handled in consideration of ESD
protection. This includes ESD-SAFE packaging within anti-static
bags, wraps, and trays. Customers are reminded to always follow ESD
safety to best protect the devices. |
